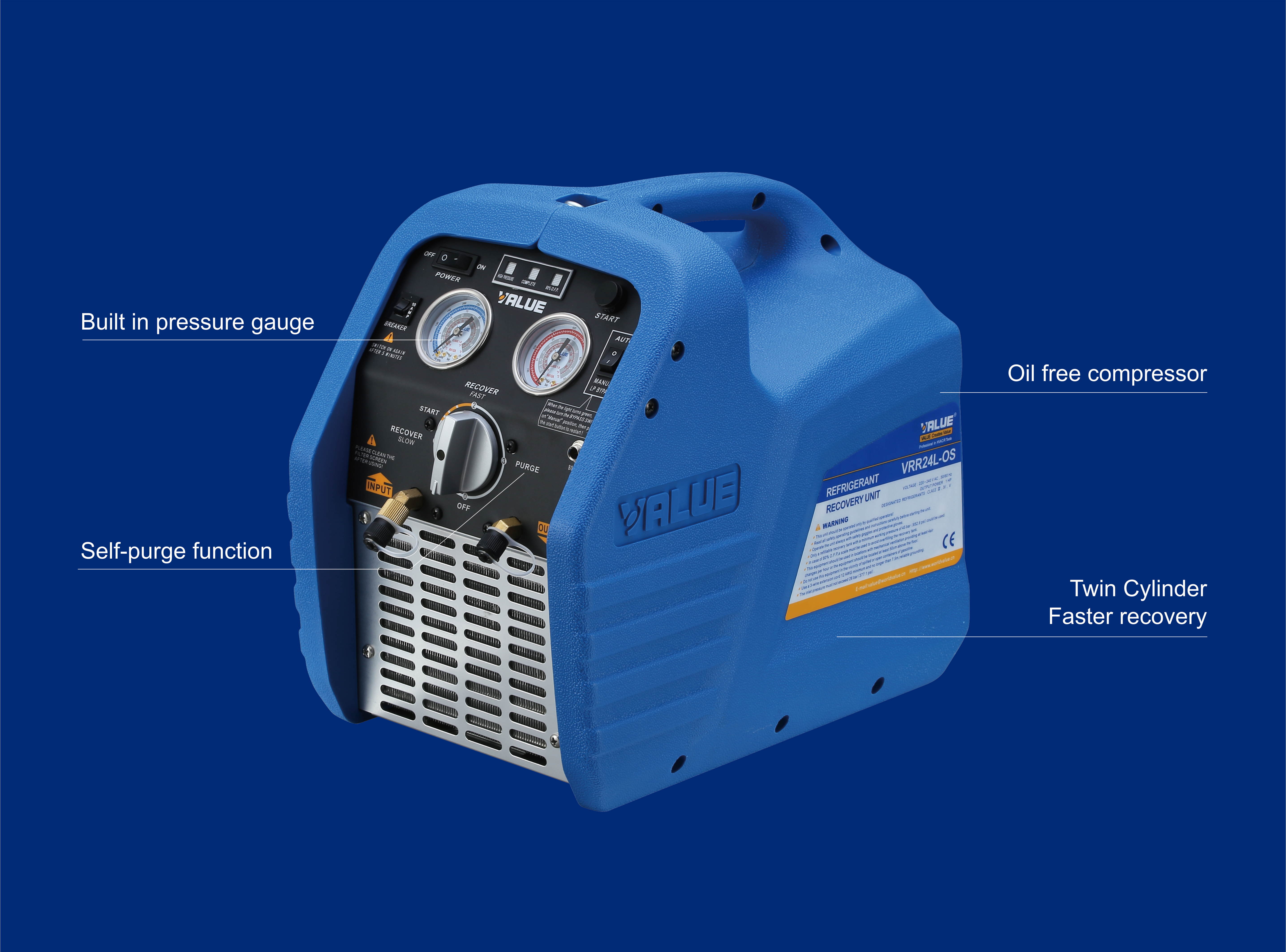

· One Key Operation
· High Pressure Protection
· Oil-free Compressor
· Self-purge Function
· Twin Cylinder(VRR24L&VRR24L-OS)
| Model | VRR24L | VRR24L-OS | |||||
| Refrigerant | Categorys Ⅲ：R12, R134a, R401C, R500 Categorys Ⅳ：R22,R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A，R411B, R412A, R502, R509 Categorys Ⅴ：R402A, R404A, R407A, R407B, R410A, R507 | ||||||
| Power Supply | 220-240VAC 50/60Hz | 115V~/60Hz | 220-240VAC 50/60Hz | 115V~/60Hz | |||
| Motor | 1 HP | 1 HP | 1 HP | 1 HP | |||
| Motor Speed | 1450 rpm/1750 rpm | 1750 rpm | 1450 rpm/1750 rpm | 1750 rpm | |||
| Maximal Current Draw | 5 A | 10 A | 5 A | 10 A | |||
| Compressor | Oil-less, Air-cooled, Piston style | ||||||
| Automatic Safety Shut-Off | 38.5bar/3850kPa(558psi) | ||||||
| Recovery Rate (kg/min) | Categorys Ⅲ | Categorys Ⅳ | Categorys Ⅴ | Categorys Ⅲ | Categorys Ⅳ | Categorys Ⅴ | |
| Vapor | 0.40 | 0.50 | 0.50 | 0.40 | 0.50 | 0.50 | |
| Liquid | 3.00 | 3.50 | 3.50 | 3.00 | 3.50 | 3.50 | |
| Push/Pull | 7.50 | 8.50 | 9.50 | 7.50 | 8.50 | 9.50 | |
| Operating Temperature | 0°C-40 °C | ||||||
| Dimensions | 450x250x355 mm | ||||||
| Weight | 13.5 kg | 14.7 kg | |||||
